AIRCRAFT ULD'S DIAGRAM

AMA Wide body aircraft.Main deck pallet container.Suitable for the following aircraft: Boesing 747F Volume 580 cu.ft(16.4 cu.m) Tare weight 350 kgs/770 lbs Max Gross Weight 6804 kgs/15000 lbs
LD2 APE Wide body aircraft.Half width lower deck pallet container.Suitable for the following aircraft: Boesing 767 Volume 120 cu.ft(3.5 cu.m) Tare weight 70 kgs/154 lbs Max Gross Weight 1225 kgs/2700 lbs
LD3 AKE Wide body aircraft.Half width lower deck pallet container.Suitable for the following aircraft: Boesing 747,767,777 Volume 150 cu.ft(4.2 cu.m) Tare weight 72 kgs/158 lbs Max Gross Weight 1588 kgs/3493 lbs
LD9 AAP Wide body aircraft.Full width lower deck pallet container.Suitable for the following aircraft: Boesing 747,767,777 Volume 350 cu.ft(10.0 cu.m) Tare weight 200 kgs/440 lbs Max Gross Weight 8033 kgs/13273 lbs
LD11 ALP/PLA Wide body aircraft.ALP & PLA.Suitable for the following aircraft:Boesing 747 & 777 ALP PLA Full width lower deck container Full width lower deck pallet Vol: 240 cu.ft 6.8 cu.m) Vol: 245 cu.ft (7.0 cu.m) Tare weight: 185kgs / 407 lbs Tare weight: 73kgs / 161 lbs Max Gross: 3176kgs / 6987lbs Max Gross: 3176kgs / 6987lbs

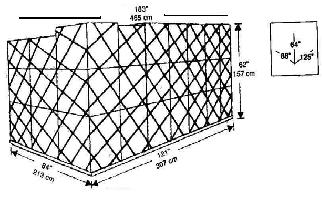

PAP/PIP/PAG Full width pallet with net.Suitable for the following aircraft: Boesing 747,767,777 Volume 240 cu.ft(11.9 cu.m)(with allowable overhead)Tare weight 120 kgs/264 lbs Max Gross Weight 6033 kgs/13273 lbs 5103 kgs/11227 lbs
